100w Explosion Proof Led High Bay Light
Structural properties:
1. Explosion proof high bay light is designed and manufactured completely in accordance with the explosion-proof explosion-proof requirements. It has excellent explosion-proof effect and can work safely and reliably in various places.
2, explosion proof led light shell is made of high-quality aluminum alloy die-casting, high strength, surface high-voltage electrostatic spraying and sealing process can prevent rain, water spray; lamp shell will never corrode, rust, strong corrosion resistance, anti-corrosion grade Reach WF2.
3. Adopt toughened glass with high strength, pass strict impact test and heat resistance test, and have reliable explosion-proof performance.
4. There is a good sealing structure between the joint surfaces of explosion proof led floodlights. The sealing rings are made of silicone rubber material, which is resistant to high temperature and aging, and the protection level of the shell reaches IP65.
5. The light source cavity is composed of multiple LED lamp beads, which has a long service life and high luminous efficiency; the use of nano-reflective cups greatly improves the use efficiency of the lamp, and the luminous efficiency is higher.
6. The exposed fasteners are all made of stainless steel screws, which have strong corrosion resistance and will never rust.
7. It can be installed in various installation methods such as ceiling type, suspension rod type, wall-mounted type, guardrail type, and bent rod type.
8. Emergency devices can be equipped according to requirements. When the power supply is cut off, it will automatically switch to the emergency lighting state;
9. Toughened glass can choose frosted type or transparent type.
Applicable scope:
- 1, Suitable for explosive gas mixtures in temperature groups T1 to T6. Suitable for hazardous areas with explosive gas mixtures: Zone 1 and Zone 2. Suitable for places with combustible dust: Zone 21 and Zone 22.
- 2, Suitable for hazardous locations with Class IIA, IIB, and IIC explosive gas mixtures.
- 3, Suitable for fixed lighting needs in hazardous environments such as chemical plants, warehouses, power plants, paint shops, boiler rooms, gas stations, gas stations, tank farms, etc.
| Parameter Name | Value | Parameter Name | Value |
| Type Of Light Source | Led Light Source | Light source technology | SMD patch type |
| Enclosure Rating | IP65 | Shell anti-corrosion grade | WF2 |
| Power Factor | ≥0.95 | Power Efficiency | ≥0.88 |
| Inlet Specification | G3/4°(φ6~φ12mm) | Color temperature | 5500K～6500K |

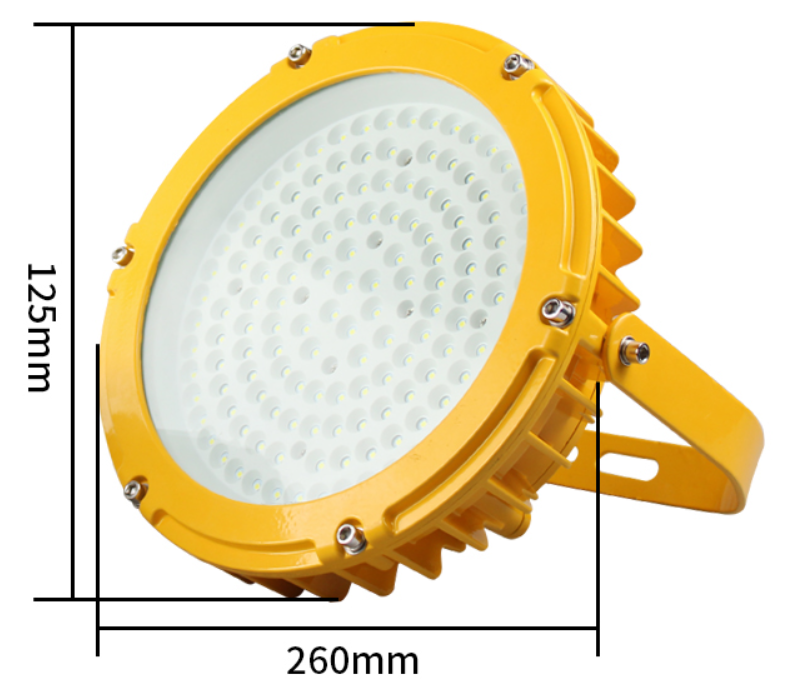

| Dimensions | Dia260×125mm | Lamp Weight | 3.9Kg |
| | Dia300×130mm | | 5.8Kg |
| Recommended Installation Height | 4m～8m | Recommended installation distance | 3m～6m |
| Explosion-Proof Mark | Exde ⅡCT6 Gb/Ex tD A21 IP65 T80℃ |

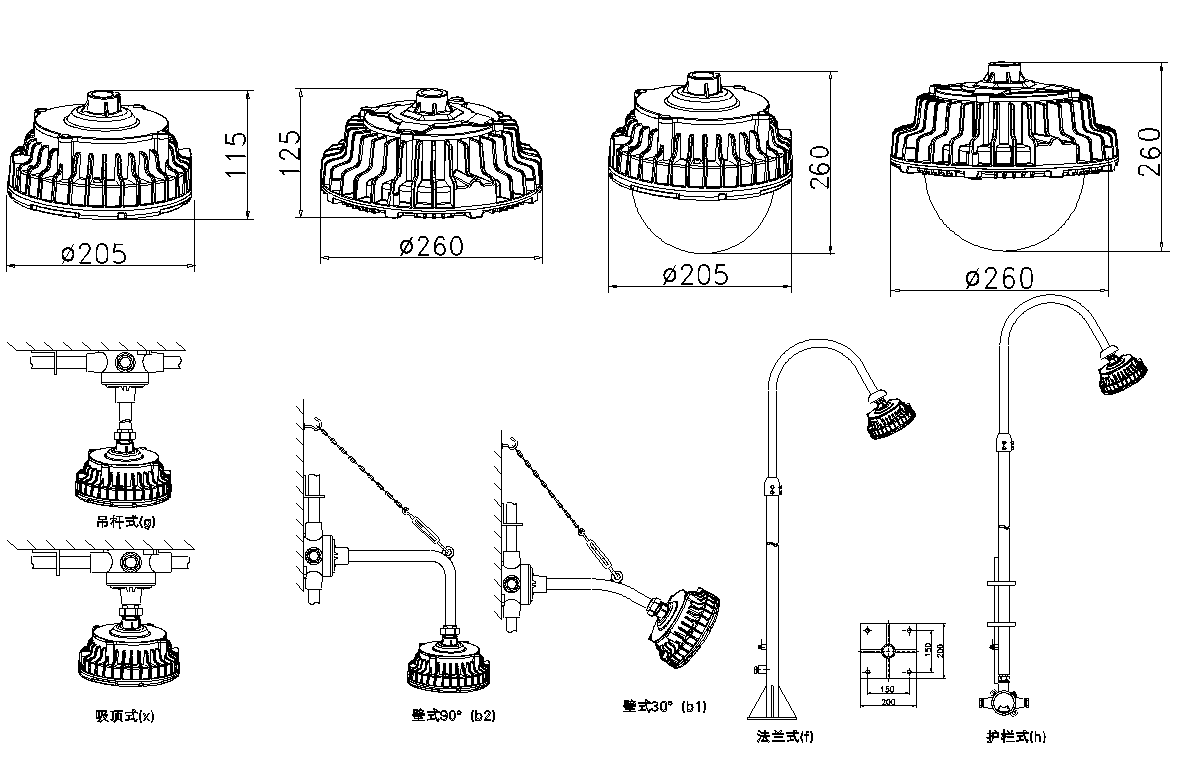

| Installation Method | Ceiling mounted (x), boom mounted (g), wall mounted (b30 °/b90 °), guardrail mounted (h), flange mounted (f)" |
